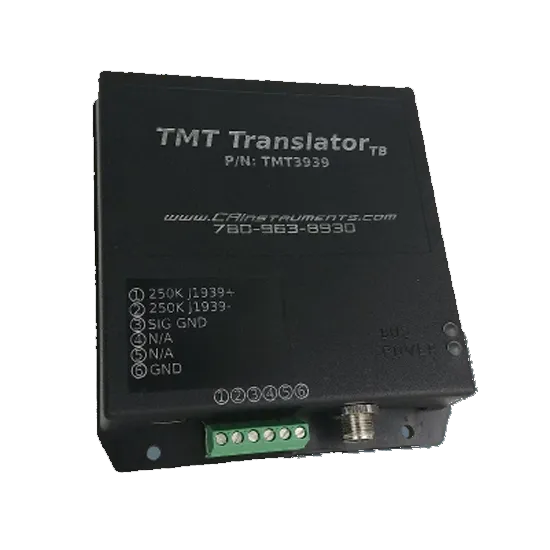

TMT Translator TMT3939 dual J1939 translator gateway by CA Instruments. Black enclosure with TMT Translator lettering, the part number, website and support phone number printed on the label, the wiring label printed on the lower left, and the green 6-position terminal block along the bottom edge.
TMT Translator TMT3939 dual J1939 translator gateway by CA Instruments. Black enclosure with TMT Translator lettering, the part number, website and support phone number printed on the label, the wiring label printed on the lower left, and the green 6-position terminal block along the bottom edge.
TMT Translator TMT3939 dual J1939 translator gateway dimension diagram by CA Instruments. Front view of the black enclosure with TMT Translator TB lettering, the wiring legend on the lower left, BUS and POWER indicators on the lower right, mounting flanges at the top and bottom, and the green terminal block centered along the bottom edge with terminal positions 1 to 12 numbered above it. Dimensions shown are 4.93 inches overall width, 3.5 inches between the upper mounting holes, 5.82 inches overall height including the mounting flange, 5.375 inches for the main enclosure height, and mounting holes 0.175 inches in diameter.

TMT Translator TMT3939

SKU: TMT3939

Description

The TMT3939 bridges two SAE J1939 networks running at different baud rates, translating data between a 250K and a 500K bus in real time.



Warranty & Support

2-year limited warranty. Free lifetime technical support. Contact us here.

Additional details
